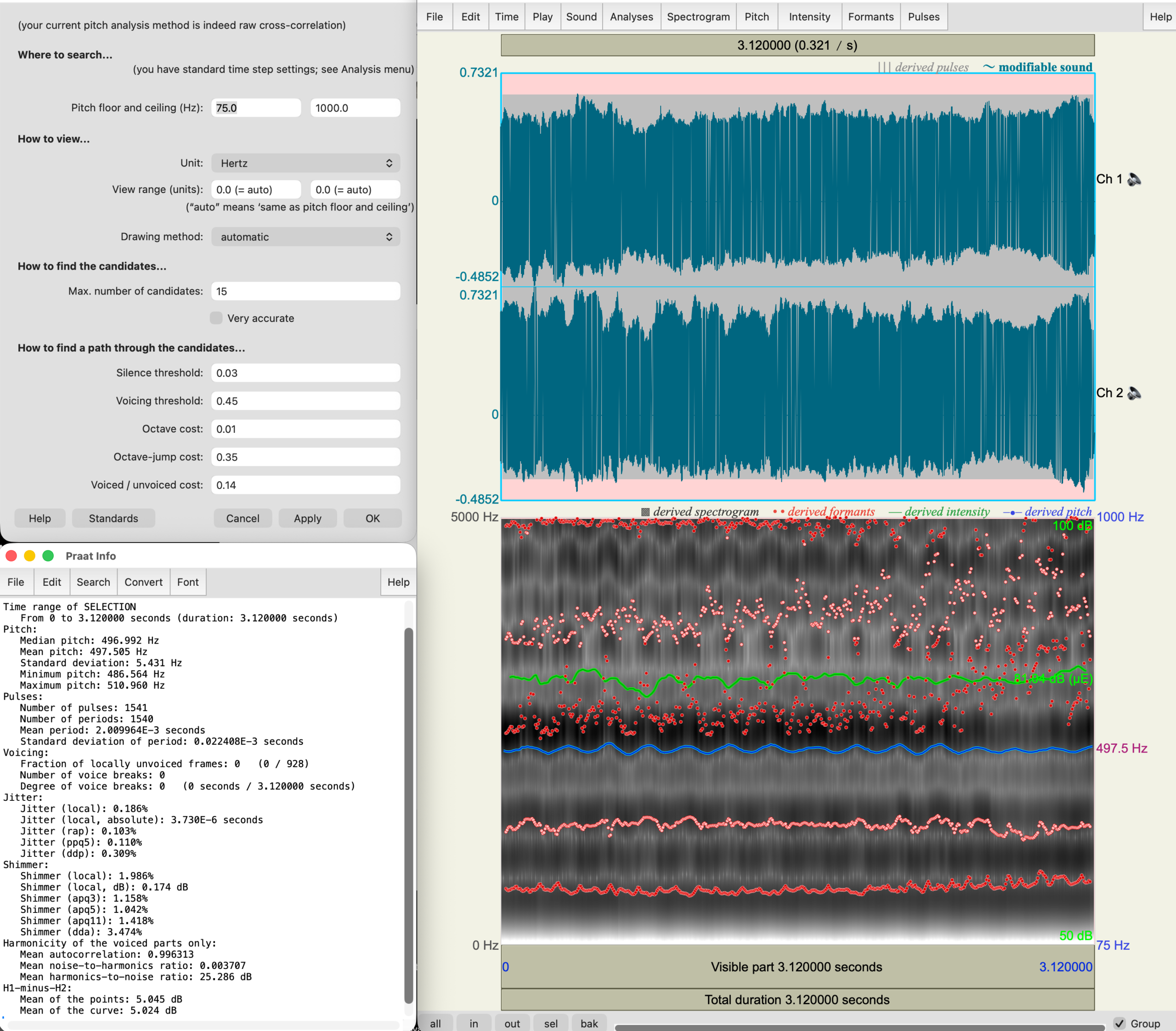

H4, vowel “E” — pianissimo. Spectral analysis.

Dynamic level. The VU meter reads approximately -12 to -13 dB — genuine pianissimo. This is not mezzo-piano. This is the voice operating at its lowest functional pressure level.

Fundamental and harmonic structure. Energy begins at approximately 494 Hz — the fundamental of H4 — with nothing below. The harmonics are present, regular, and yellow in the upper layers of the waterfall. What is immediately striking is that the harmonic structure does not collapse at this dynamic level. The teeth of the waterfall remain defined and consistent. The voice has not withdrawn from the tone — it has simply reduced pressure while maintaining the resonant configuration intact.

The broad energy band — 400–800 Hz. The wide, smooth elevation visible in the middle-left of the graph is characteristic of vowel E’s formant structure — F1 and F2 are both active in this region. This is not compensation or constriction. It is the natural acoustic shape of the vowel at this pitch.

Singer’s Formant at pianissimo. This is the critical observation. The 3,200–6,400 Hz region is visible and present — not dominant, but measurable and structured — across the time layers of the waterfall. On vowel E at pianissimo, maintaining any presence in the Singer’s Formant window requires that the epilaryngeal configuration hold its geometry even as subglottic pressure drops to its lowest point. Most voices lose the Singer’s Formant entirely at pianissimo. Here it remains.

High-frequency extension. Energy continues into the 12,800–24,000 Hz range — visible in the upper yellow layers. On a closed vowel at pianissimo, this is acoustically exceptional. The resonant space has not collapsed under reduced pressure.

What this means. Pianissimo is the hardest dynamic for a compensated voice to maintain. Compensation depends on pressure — and at pianissimo, there is almost none. What remains at pianissimo is only what is structurally there. This spectrogram shows a voice whose resonant architecture holds at the lowest pressure level — which means the architecture is not dependent on pressure to exist. It is built into the system.

Placed alongside the A1 forte and C5 forte measurements, this completes the picture. The voice does not need volume to resonate. It resonates because the system is balanced — not because the pressure is high.
